MEC 2633ES Electric Scissor Lift 26ft. Manlift Aerial Work Platform

Description:

REFURBISHED MEC 2633ES Electric 26ft. Scissor Lift

Specs:

• Capacity: 1,000 lbs.
• Power Type: Electric (24v) ; NEW BATTERIES
• Charger: Onboard
• Tires: Solid
• Working Height - 32ft
• Platform Height – Elevated 26ft
• Platform Height - Lowered - 42.5 in
•   C. Stowed Height (Rails Folded) 78.75 in
•  D. Platform Size (W x L) 33 in x 91 in
•  E. Deck Extension 32in.
•  F. Overall Width 33 in
• G. Overall Length 98 in
•  H. Wheelbase 71 in.
•  Platform Capacity 500 lbs.
• Capacity on Optional Deck Extension 250 lbs.
• Lift/Lower Time 18/35 sec.
• Maximum Drive Height - Fully Elevated
• Machine weight - 4650 lbs.
• Maximum Ground Bearing Pressure 87 psi
• • Drive Speed - Lowered - 2.5mph
• • Drive Speed - Elevated - 0.5mph
• • Gradeability 28%
• • Turning Radius – (Inside) -  Zero
• • Turning Radius – (Outside) 88 in

Warranty: 90-Day (Parts & Labor)

List of Preventative Service:

Preventative Maintenance (Fluids/Filters/Grease Chassis), 120-Point Inspection, NEW Batteries, New Motor Brushes, Rebuilt Lift Cylinder & Steer Cylinder, Inspect All Safety Equipment (Lights, Seat Belts, Horn, Back-Up Alarm), Inspect/Adjust Brakes, Inspect/Repair Any Oil Leaks, Inspect All Linkages & Adjust if Necessary.

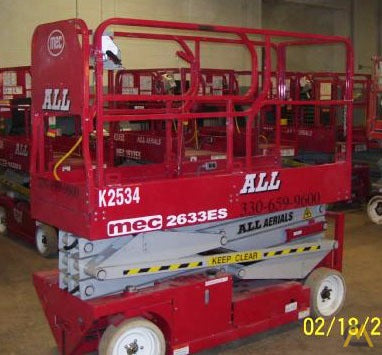

Please note: Picture is a stock photo as a placeholder for what you will actually receive.
